Your present location:Home >> OLED Display





Color AMOLED Display



1.39 inch color AMOLED 454x454, Outdoor display: GDOD0139CP45



Product Model: GDOD0139CP45
Outline Dimension:38.64(W)x38.21(H)x0.678(T)mm
Active Area:35.41(W)x35.41(H) mm
Display Format:454x454Dots
Interface: QAD-SPI&MIPI
Operating Temperature:-20℃~70℃
Storage Temperature:-30℃~80℃
Power Supply:3.3V
IC:SH8601



2.4 inch Rigid AMOLED 450x600 Colorful AMOLED Display: GDOJ024C45

Product Model: GDOJ024C45
Outline Dimension:38.72(W)x51.56(H)x0.9(T)mm
Active Area:31.72(W)x48.96(H) mm
Display Format:450x600 Dots
Interface: SPI/MCU/MIPI
Operating Temperature:-20℃~80℃
Storage Temperature:-40℃~80℃
Power Supply:3.3V
IC:RM690B0



2.69 inch full color AMOLED with touch panel, 800x600, GDOJ0269C01-T01



Product Model: GDOJ0269C01-T01

Outline Dimension: 56.6(W)x47.25(H)x0.505(T)mm
Active Area: 54.6(W)x40.95(H)mm
Display Format: 800x600Dots
Interface: DSI 2-lane
Operating Temperature: -40℃~85℃
Storage Temperature: -55℃~125℃
Driver IC: RM69700
Touch IC: S3601



Monochrome PMOLED Display

  0.49"OLED Display Module SSD1306,White on Black

Product Model: GDO0049W

Outline Dimension: 14.50(W)x11.60(H)x1.20(T)mm

Dot Pitch: 0.175x0.175mm

Operating Voltage: 2.8V

Features: no backlight,high contrast,extremely wide viewing angle and extremely operating temperature.

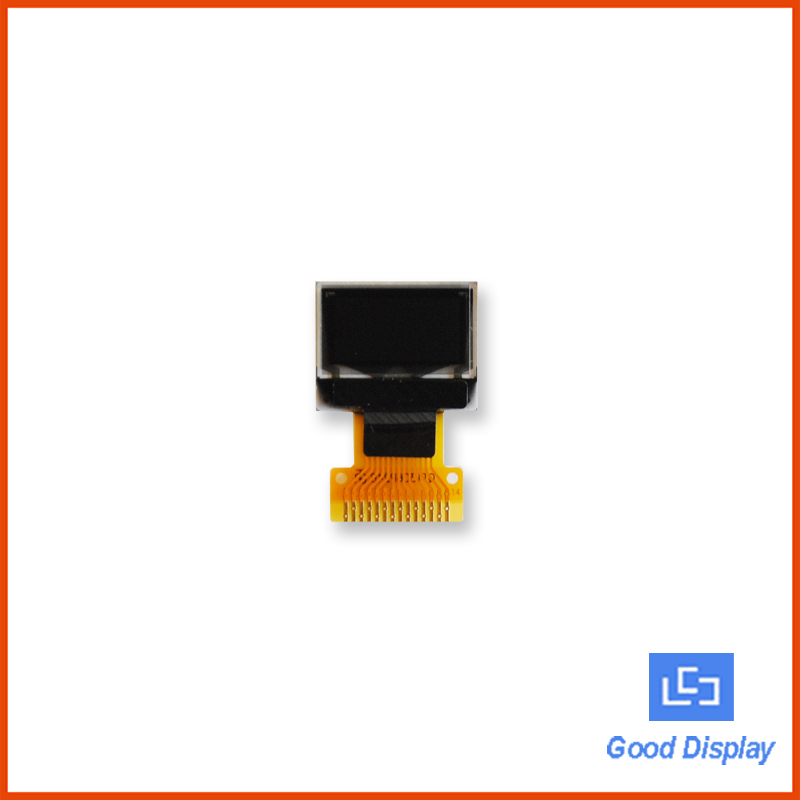

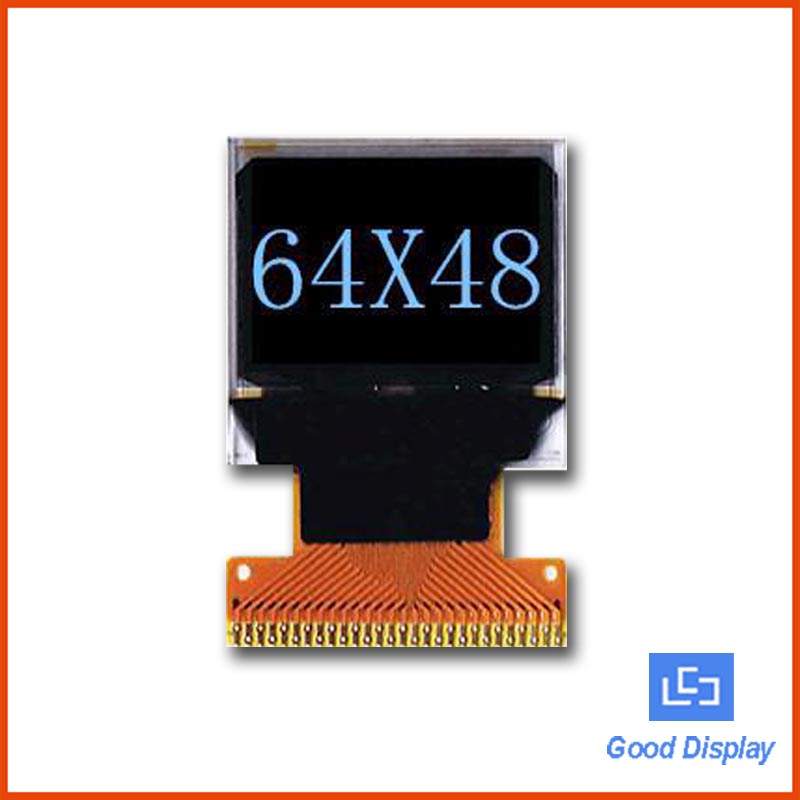

  0.66"Very Smalll OLED Display Module 64x48 Display Module

Product Model: GDO0066B

Outline Dimension: 18.46(W)x18.10(H)x1.45(T)mm

Dot Pitch: 0.21x0.21mm

Operating Voltage: 2.8V

Features: no backlight,high contrast,extremely wide viewing angle and extremely operating temperature.

  0.69 inch small white 96x16 dots OLED display GDOA0069W

Product Model: GDOA0069W

Outline Dimension: 26.3 × 8× 1.3mm

Dot Pitch: 0.18 × 0.2mm

Operating Voltage:2.8V

Features: small, white, 96x16 dots

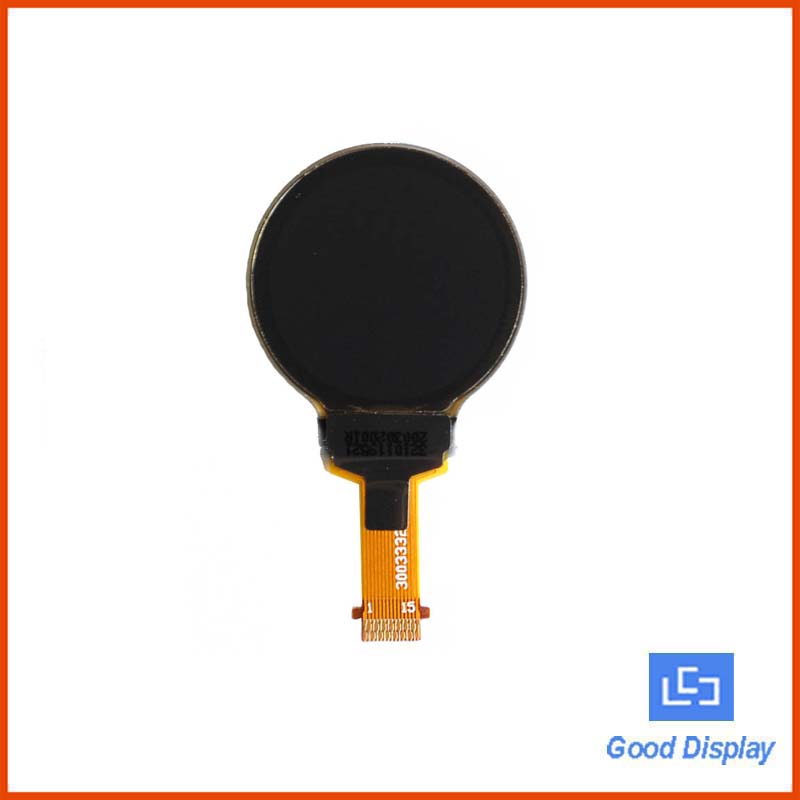

  0.75 inch round small white 128x128 dots OLED display GDOR0075W

Product Model: GDOR0075W

Outline Dimension: 23.15 (W) x 40.93 (H) x 1.21 (T) mm

Dot Pitch: 0.15 (W) x 0.15 (H)mm

Operating Voltage: 2.8V

Features: round, small,128x128

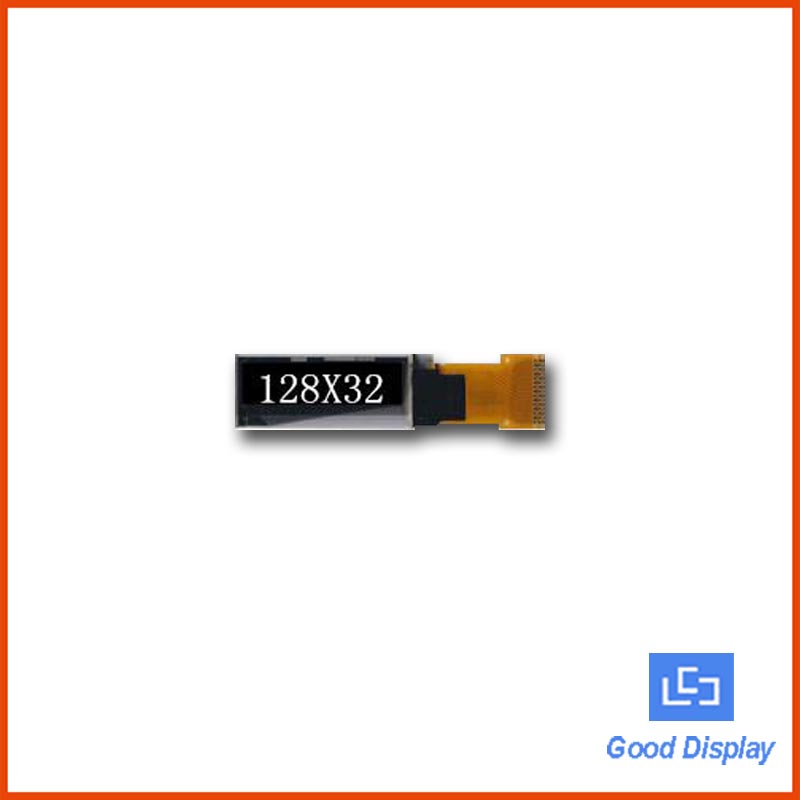

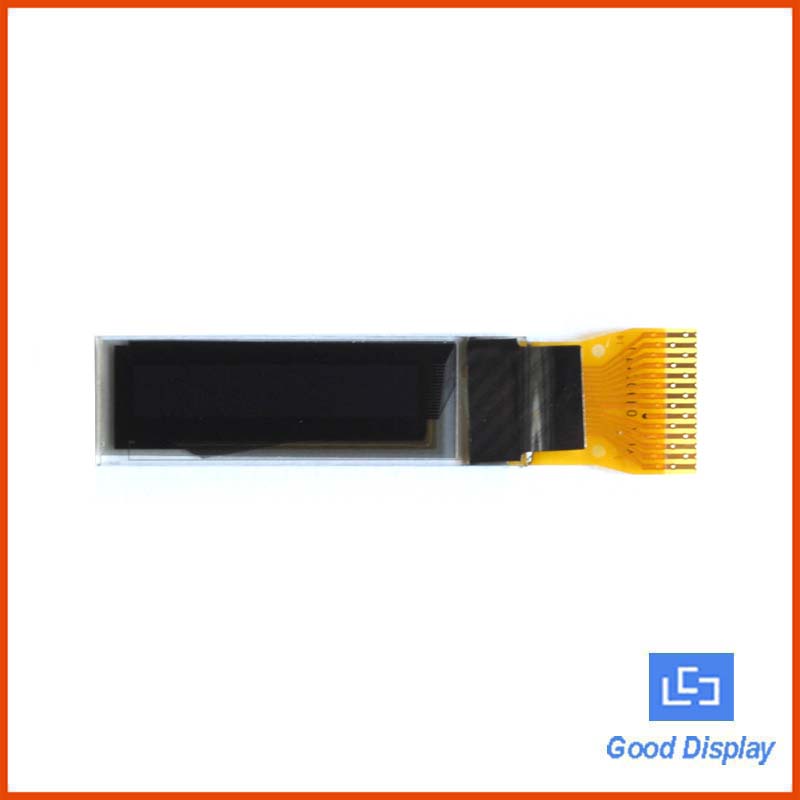

  0.91" OLED Display Module

Product Model: GDO0091B

Outline Dimension: 30.0(W)x11.50(H)x1.45(T)mm

Dot Pitch: 0.175x0.175mm

Operating Voltage: 2.8V

Features: no backlight,high contrast,extremely wide viewing angle and extremely operating temperature.

  0.96"128x64 OLED Display Module/ Blue and Yellow

Product Model: GDO0096YB

Outline Dimension: 26.70(W)x19.26(H)x1.45(T)mm

Dot Pitch: 0.17x0.17mm

Operating Voltage: 2.8V

Features: no backlight,high contrast,extremely wide viewing angle and extremely operating temperature.

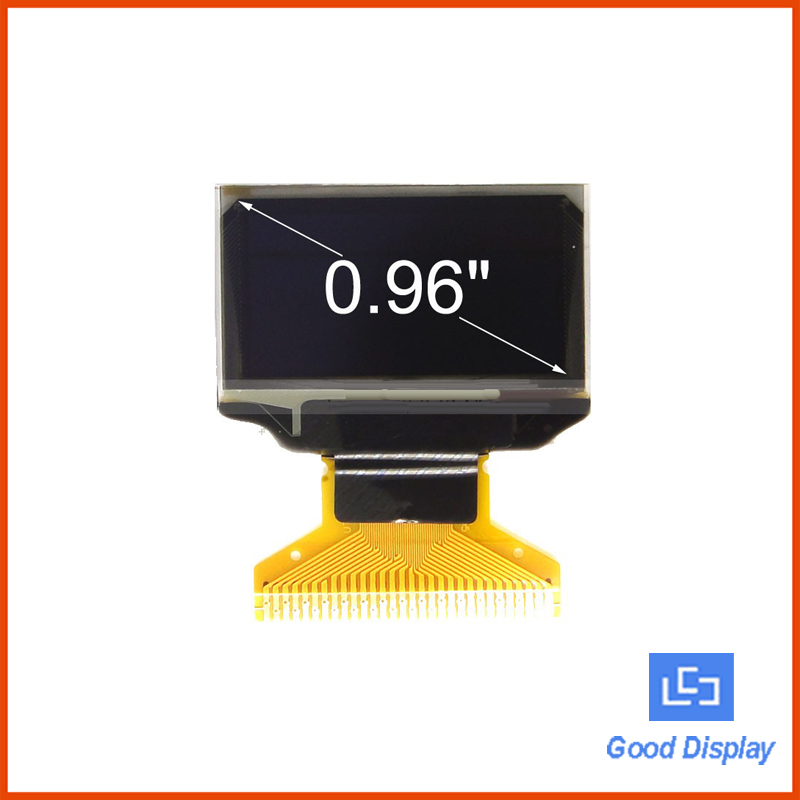

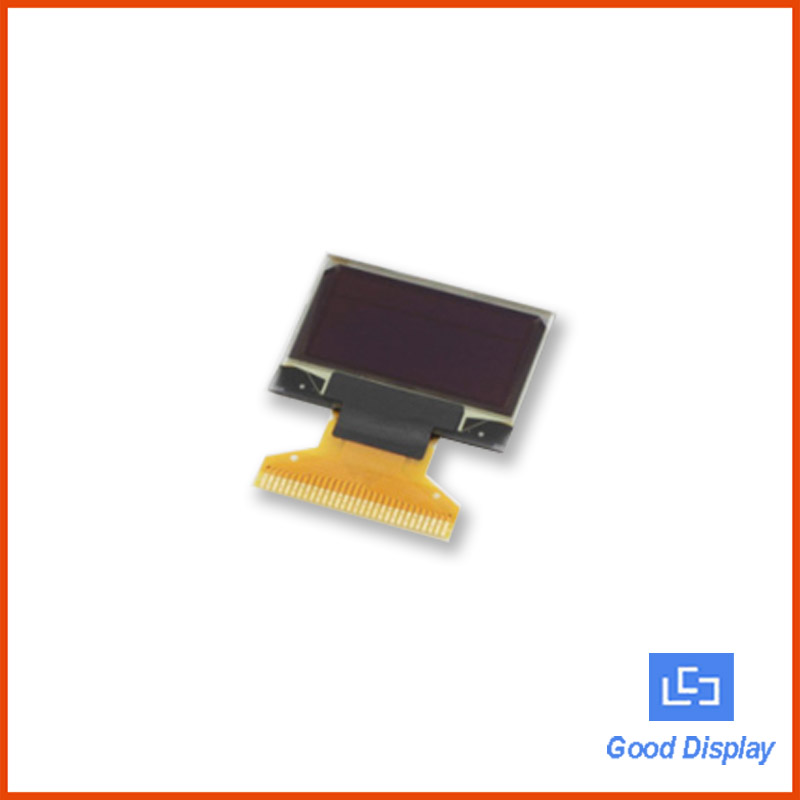

  0.96" OLED Graphic Display Module GDO096B

Product Model: GDO0096B

Outline Dimension: 26.70(W)x19.26(H)x1.45(T)mm

Dot Pitch: 0.17x0.17mm

Operating Voltage: 2.8V

Features: no backlight,high contrast,extremely wide viewing angle and extremely operating temperature.

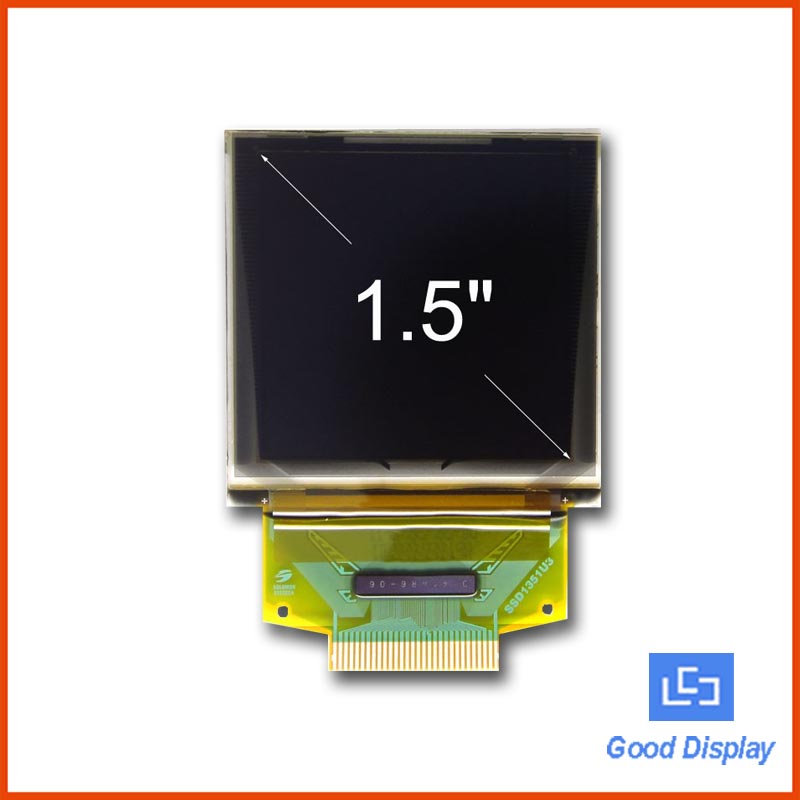

  1.5"Color OLED Display Module

Product Model: GDO0150C

Outline Dimension: 33.80(W)x34.00(H)x1.60(T)mm

Dot Pitch: 0.07x0.21mm

Operating Voltage: 2.8V

Features: color graphic OLED display module

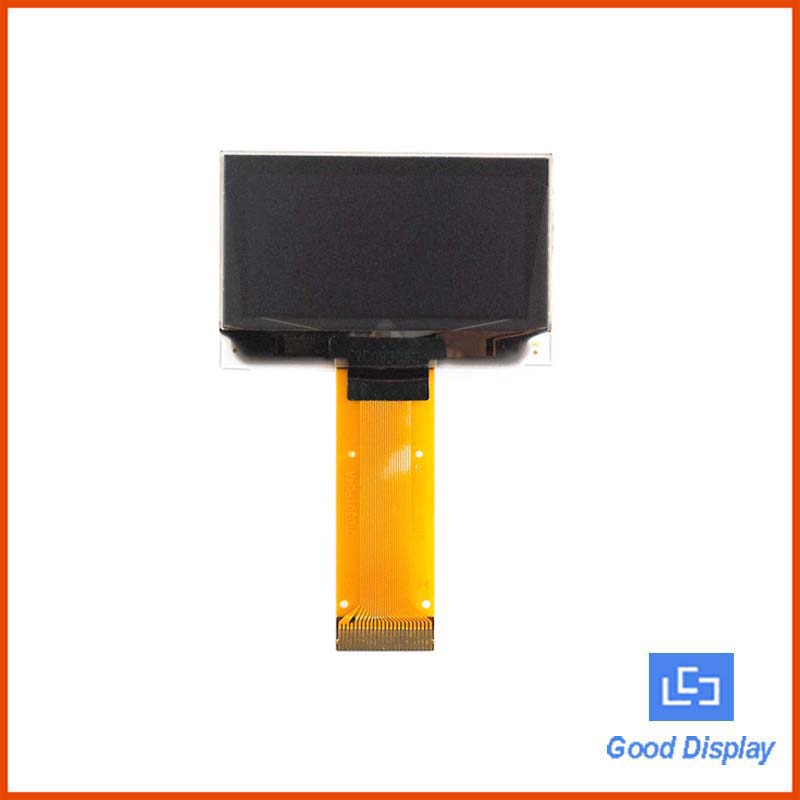

  1.54 inch White OLED Display Module GDOA0154W

Product Model: GDOA0154W

Outline Dimension: 42.04x27.22x1.4(mm) mm

Dot Pitch: 0.274x0.274(mm) mm

Operating Voltage: 2.8v

Features: Wide temperature range

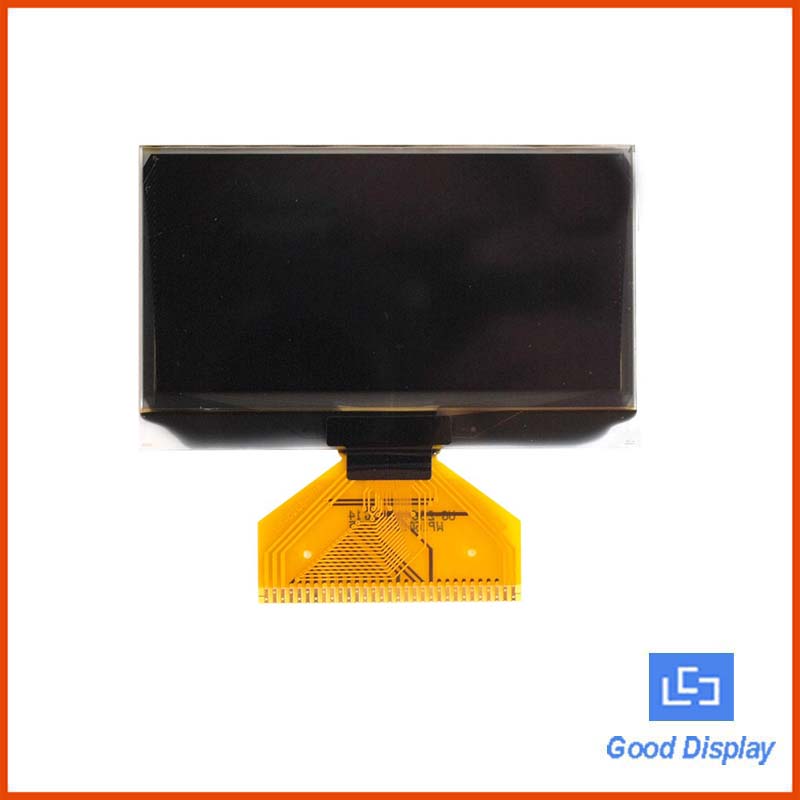

  2.4 inch green 128x64 dots OLED display GDOE0240G

Product Model: GDOE0240G

Outline Dimension: 60.50x37.00x2.00mm

Dot Pitch: 0.43x0.43mm

Operating Voltage: 2.8V

Features: 2.4 inch, green,128x64 dots, OLED

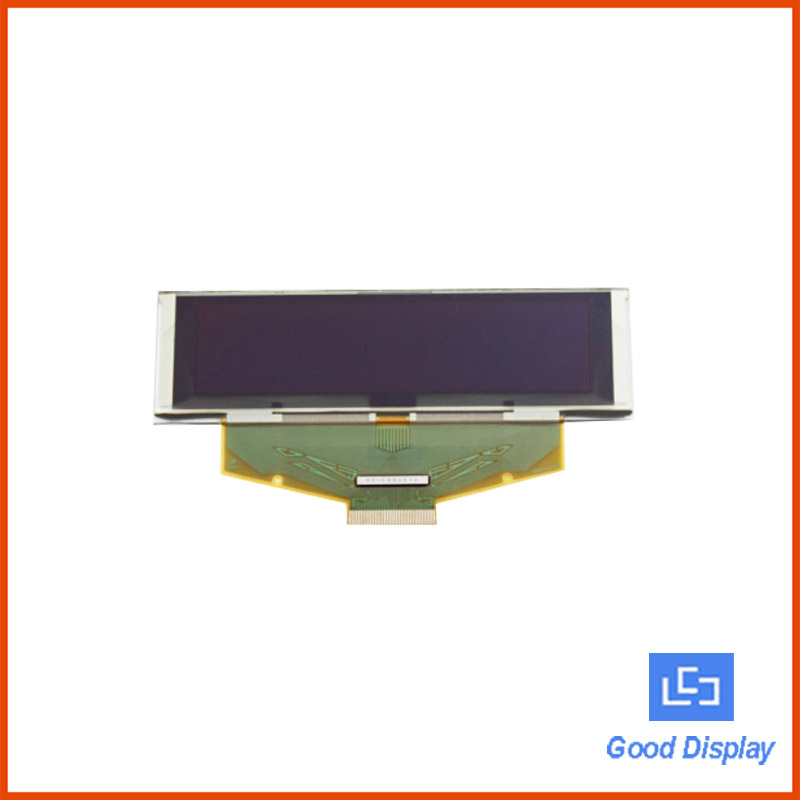

  2.8"OLED Modules 256x64 Graphic Display screen GDO028B

Product Model: GDO0280B

Outline Dimension: 84.00(W)x25.80(H)x2.00(T)mm

Dot Pitch: 0.27x0.27mm

Operating Voltage: 2.8V

Features: no backlight,high contrast,extremely wide viewing angle and extremely operating temperature.

 1-14 record total 14 record
