- Commodity name: STM32 Development Kits
INTRODUCTION
The STM32 series of 32-bit microcontrollers are based on the Cortex-M processor, which can support a wide range of 32-bit applications, including high performance, real-time functions, digital signal processing, and low power consumption and low voltage operation. Its core based on industry standards, supported by a large number of tools and software, makes this series of chips an ideal choice for many products.
The following development board combinations all support the operation of the host computer software Image to EPD. The Image to EPD software supports the direct import of pictures, eliminating the trouble of picture production and bitmap convert. The relevant download information is as follows:STM32 Development Kits List

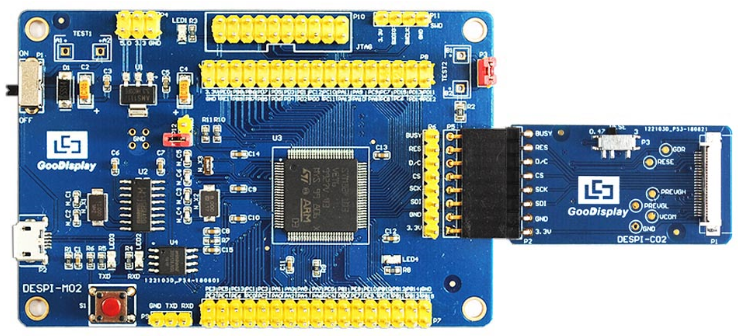

DESPI
+
=

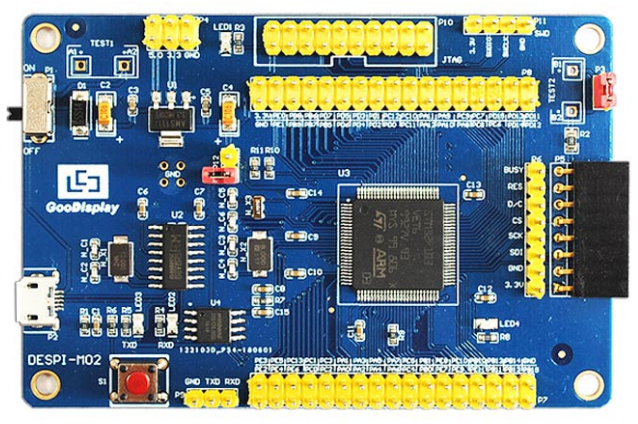

DESPI-M02
Supporting most part of the SPI interface EPD (1.54 inch, 2.13 inch, 2.6 inch, 2.7 inch, 2.9 inch, 3.71 inch, 4.2 inch, 5.83 inch, 7.5 inch).

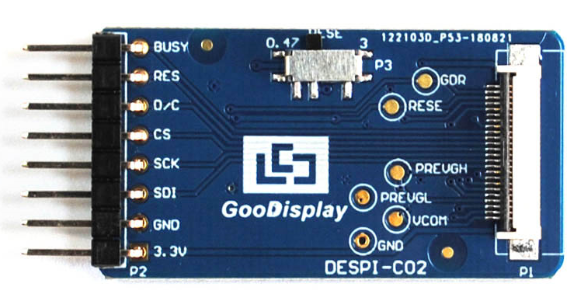

DESCRIPTION LANGUAGE UPDATE DATE SIZE DESPI Specification English 2018-07-12 1.2M DESPI-C02 Specification English 2018-07-12 733KB DESPI-C02-SCH English 2018-07-12 457KB DESPI-M02-SCH English 2018-07-12 582KB DESPI-V3.0
+
=

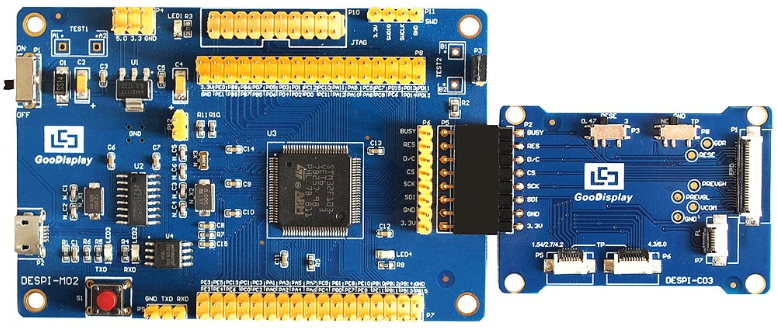

DESPI-M02
Supporting most part of the SPI interface EPD (1.54 inch, 2.13 inch, 2.6 inch, 2.7 inch, 2.9 inch, 3.71 inch, 4.2 inch, 5.83 inch, 7.5 inch).

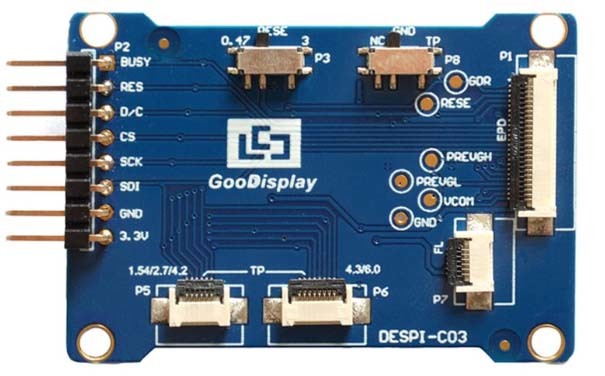

The difference of DESP-C03 with DESPI-C02: Raspberry Pi can be connected, and can test Touch Screen and Frontlight.
DESCRIPTION LANGUAGE UPDATE DATE SIZE DESPI V3.0 Specification English 2018-07-12 1.4M DESPI-C03 Specification English 2018-07-12 835KB DESPI-C03-SCH English 2018-07-12 329KB DESPI-M02-SCH English 2018-07-12 582KB Raspberry Pi User Manual English 2020-04-02 1.3M

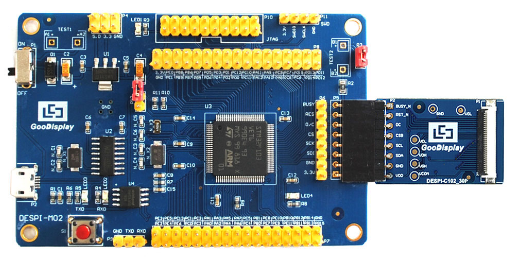

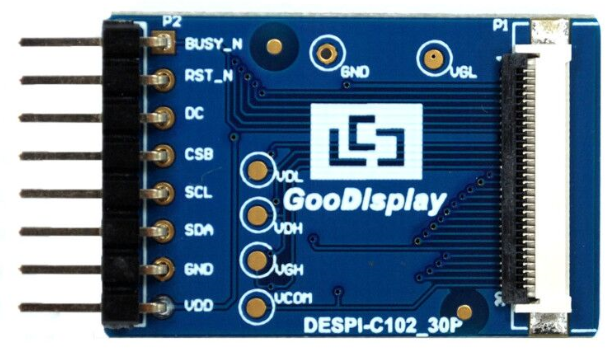

DESPI-102
+
=
DESPI-M02
Supporting 1.02 inch e-paper display.

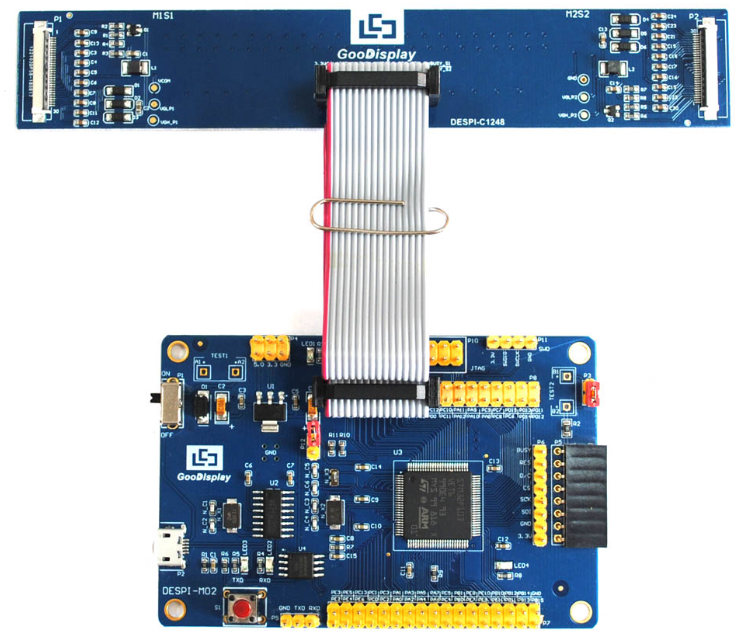

DESCRIPTION LANGUAGE UPDATE DATE SIZE DESPI-102(30P) Specification English 2018-07-12 1.3M DESPI-C102(30P) Specification English 2018-07-12 703KB DESPI-M02-SCH English 2018-07-12 582KB DESPI-C102-SCH English 2018-07-12 363KB DESPI-1248
+
=
DESPI-M02

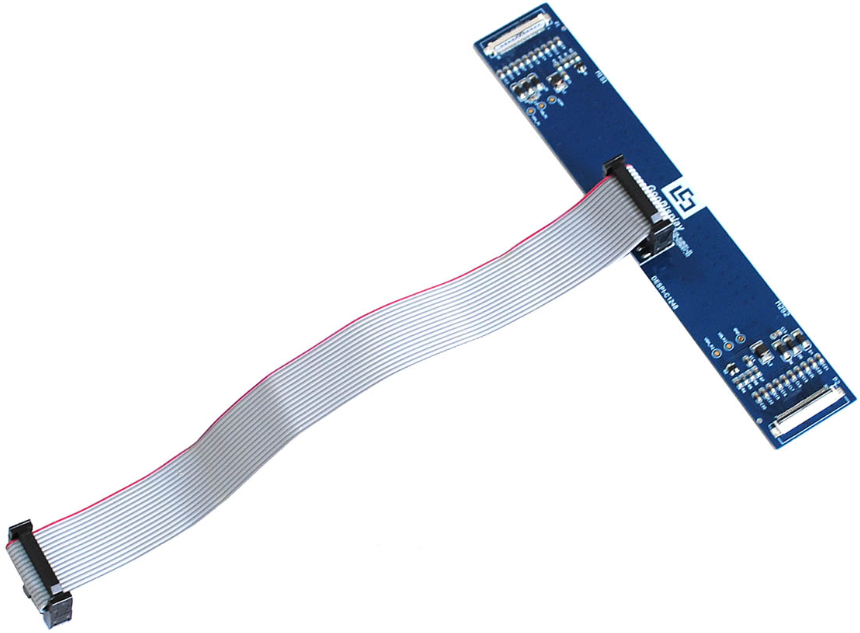

Supporting 12.48 inch SPI e-paper display.
DESCRIPTION LANGUAGE UPDATE DATE SIZE DESPI-1248 Specification English 2018-07-12 1.4M DESPI-C1248 Specification English 2018-07-12 806KB DESPI-M02-SCH English 2018-07-12 582KB DESPI-C1248-SCH English 2018-07-12 437KB Keywords:- STM32 e paper display
- e-paper STM32 driver board
-
PARAMETERS
PARAMETER
SPECIFICATIONS
PLATFORM STM32 FUNCTION
Drive E-paper Display
SUITABLE SIZE
1.54'', 2.04'', 2.13'', 2.6'', 2.7'', 2.9'', 3.71'', 4.2'', 5.83'', 7.5''
INTERFACE
USB Port
POWER INPUT
DC5V
FEATURE
Fully Refresh/ Partial Refresh
GRAYSCALE LEVEL
Max 4 Grayscale
OPERATING TEMP.
0℃~50℃
RECOMMENDED TOOL
Keil 4
EXAMPLE CODE
Available
STRUCTURE
-
