ESL Electronic Shelf Label Color 7.5 inch E-ink USB Electronic Price Tag, IL075RU
Categroy:
E-Paper Label
Keywords:
paper
messages
- Description
- Specification
- Video
-
- Commodity name: ESL Electronic Shelf Label Color 7.5 inch E-ink USB Electronic Price Tag, IL075RU
INTRODUCTION
IL075RU uses color 7.5 inch electronic paper screen (GDEY075Z08) as the display panel instead of traditional paper labels and doorplate. It has a high-tech appearance design and a low-power and energy-saving display solution. It doesn't need battery. The product adopts a variety of wired transmission methods and is a complete software-hardware integrated system. You can use computer software to change the content of the label through the USB cable, which provides users with more convenience.
FEATURE
● Bistable
● No Battery
● High contrast
● Wide viewing angle
● No light pollution
● USB wired transmission
● The picture is not lost when the power is off
● Energy saving and environmental protection
HOW TO USE

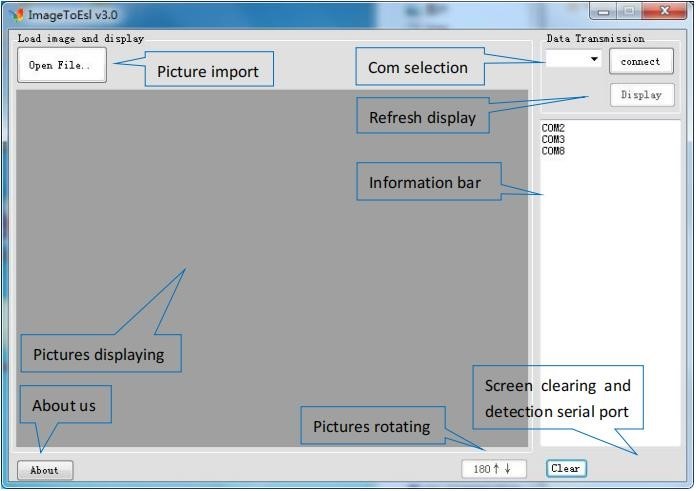

1. Software Preview
2. Settings of Serial Ports
Users need to first connect the DEMO board to the USB port of the PC to select the related serial port and then open the software to to select the related port. When entered the interface, there will be present available serial ports in the left top column for users to select from and you can press “Clear” to update them. Then click "connect" to finish the connection when "connect is success" appears in the information column.
3. Uploading and Saving Images

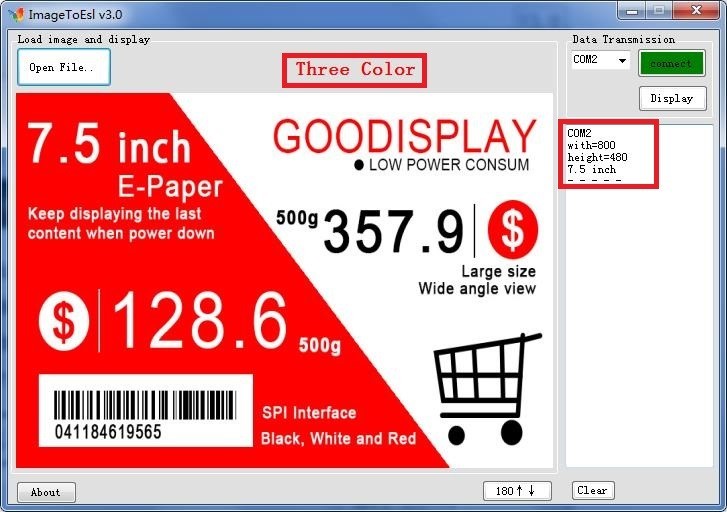

1) Image Uploading：Click “Open File” to select one finished image to upload and then the parameters such as size, resolution, RGB and etc of it will appear in the interface.
2) Image Saving：Click “Save As”to save the image uploaded.
4. Data Transmission

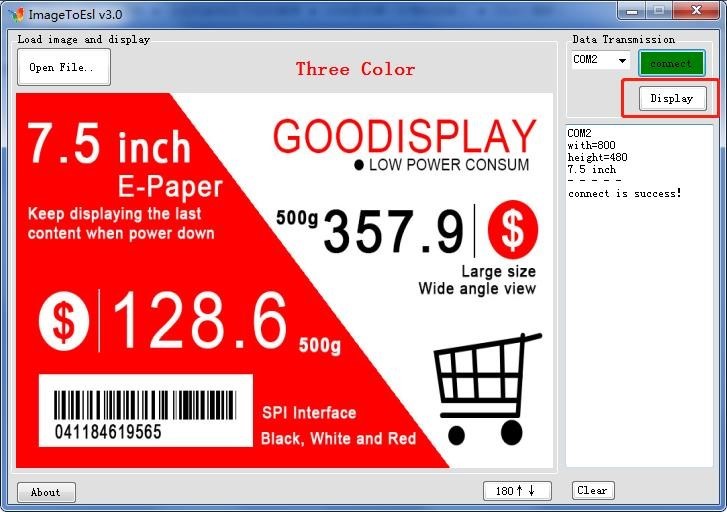

Click "Display" to transmit the data, which normally in the left information box will appear "Successful handshake" to inform you the connection has been done successfully and the present volume of data transmitted is also visible.
-
PARAMETERS
PART NUMBER
IL075RU (single screen)
OUTLINE SIZE
196x138mm
RESOLUTION
800x480
POWER SUPPLY
Micro USB
APPEARANCE Standard unit available with white frame OPERATING TEMP.
0℃~50℃ SCREEN COLOR Black, white and white OPERATING SOFTWARE Available MAIN FUNCTION
Directly through the upper computer software through the serial port transmission image. It has a high-tech appearance design and a low-power and energy-saving display soulution. It doesn't need battery
DRAWING
