4.2 inch Wireless Color E-ink Display Passive NFC ESL Epaper Price tag, No Battery, GDN042R
Categroy:
NFC Tag
Keywords:
paper
messages
- Description
- Specification
- Video
-
- Commodity name: 4.2 inch Wireless Color E-ink Display Passive NFC ESL Epaper Price tag, No Battery, GDN042R
GDN042R is a Color Eink Display Passive NFC ESL Epaper Price tag, 4.2 inch, wireless, no battery required.
INTRODUCTION
GDN042R is a Color Eink Display Passive NFC ESL Epaper Price tag, 4.2 inch, wireless , adopts novel passive NFC technology, no battery required, no more battery life trouble. 4.2 inch eink display, black, white and red, support 4 Grayscale. Use protective ABS case, beautiful and light weight, supports personalized customization. Refreshed By Smartphone, Comes With Android APP, As Easy As Swiping A Credit Card!
* Note: This GDN042R Software can only be applied to Android phones.
FEATURE
No Battery Required, No More Battery Life Trouble
● It does not contain a power supply such as a battery, which is suitable for applications where the power supply is restricted
● The displayed content can be customized and controlled by the user at any time through the smart phone, which is convenient and flexible.
● Suitable for equipment labels, shelf labels, information storage, etc.
● With ABS plastic housing with better strength and toughness
● Provides a matching Android APP to help users edit and manage the display content of the eink display
● Provide complete supporting information manual
HOW TO USE
Use A Smart Phone With NFC Function, Or An NFC Reader
1. Download the APP，scan the QR code with a browser

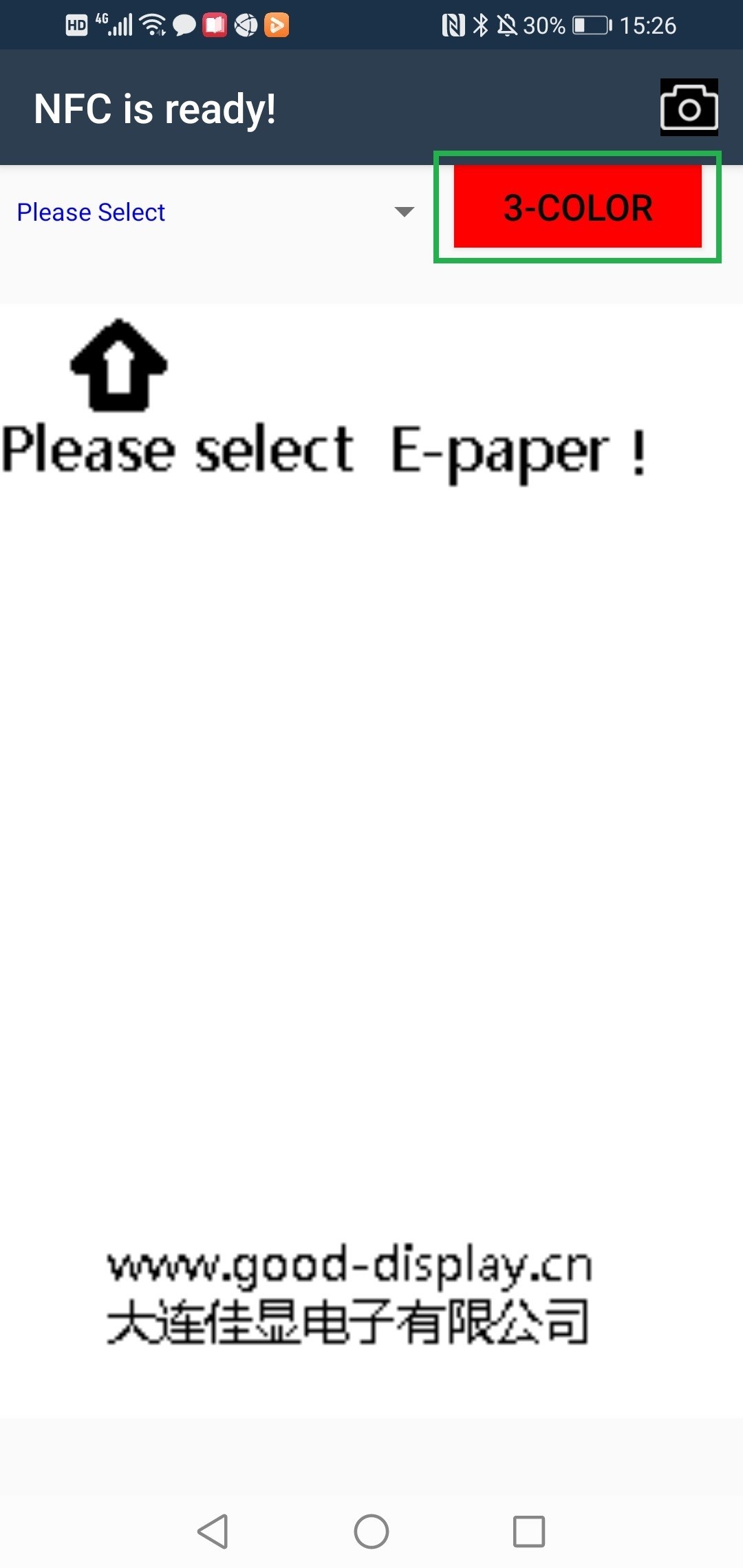

2. Select mode as 3-COLOR

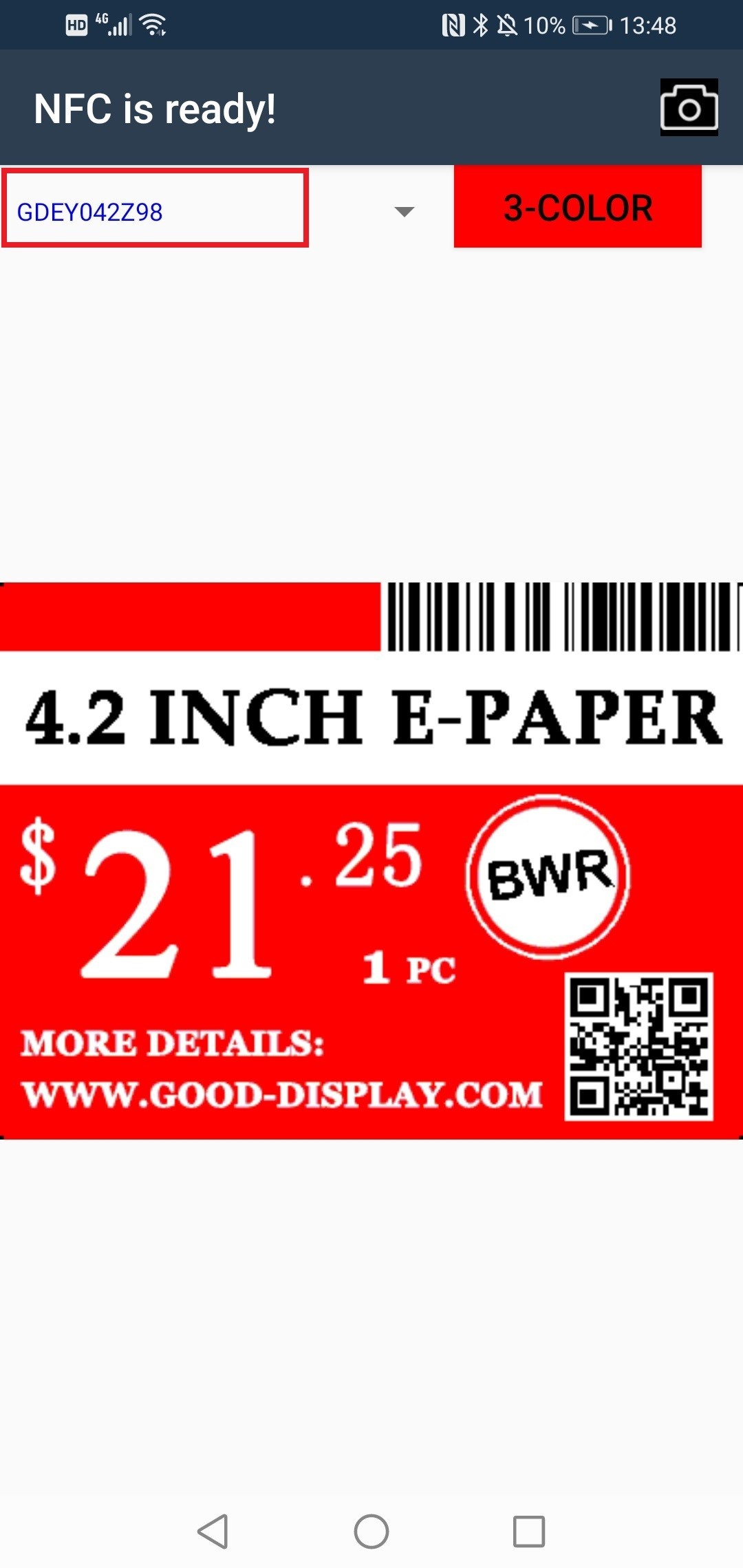

3. Select model name as GDEY042Z98

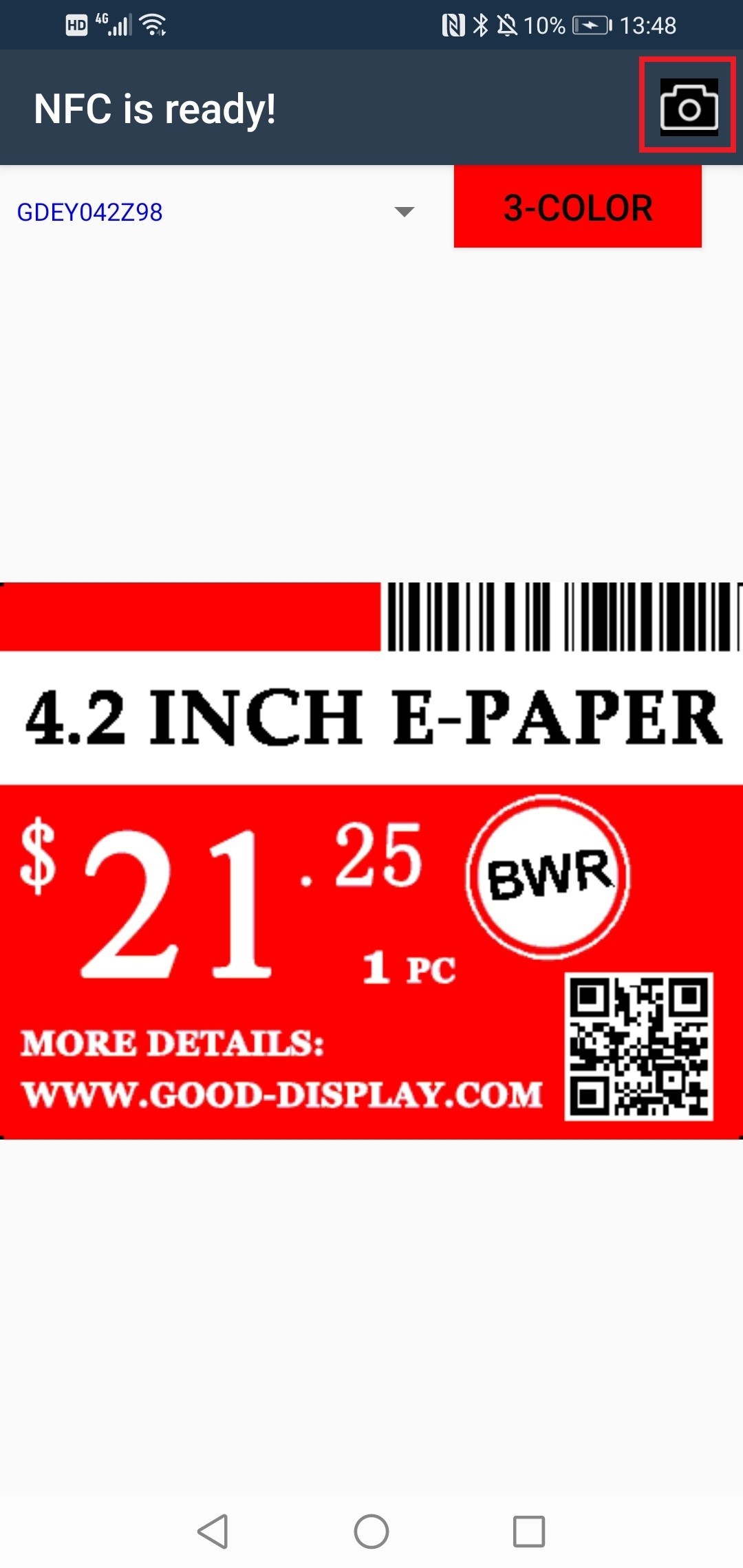

4. Select the camera LOGO to choose your image.

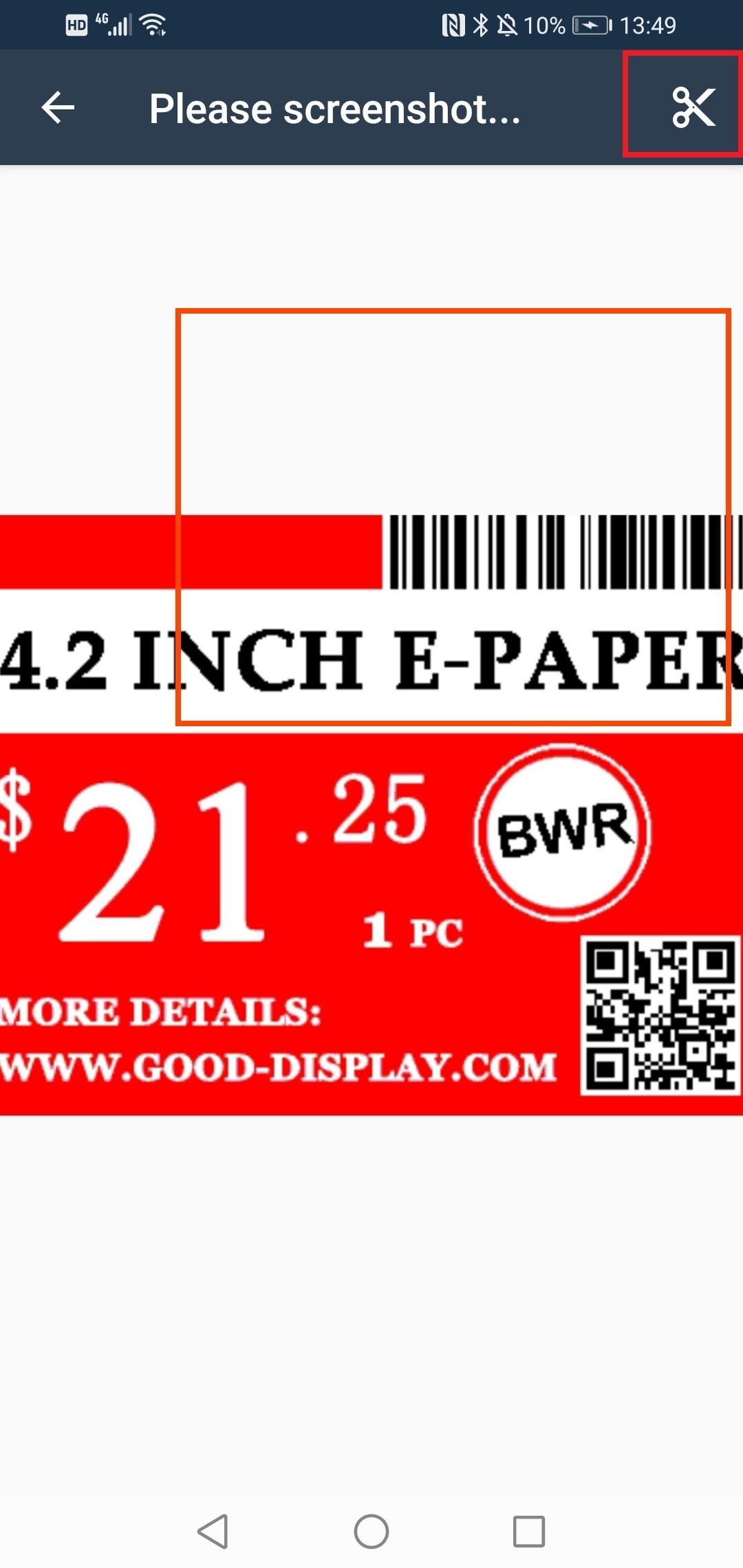

5. Use the red frame to select and click 'Crop' to prepare your image. (It is recommended to pre-set the size and format of your image according to the parameters of E-paper display)
6. After setting done, please place your NFC mobile device against the antenna area at the back of 4.2 inch NFC E-label when APP will react to it, starting data-transmission and E-paper image updating.
* Note: Please turn the NFC function on and do not make any movement of your mobile device during data-transmission and image updating.
Keywords:- epaper price tag
- color eink display
- 4.2 inch eink display
-
PARAMETERS
PART NUMBER
GDN042R
SIZE OF EPD
4.2 inch
POWER SUPPLY
Wireless
DISPLAY COLOR
Black / White / Red
DOT PITCH(mm)
0.212x0.212
RESOLUTION
400x300
GREY SCALE
2
REFRESH TIME
14s
DISPLAY SIZE(mm)
84.8x63.6
OUTLINE DIMENSION(mm)
104.8x94x10.18
DRAWING
-
