- Commodity name: 4.3 inch e-paper display parallel interface, with glossy glass cover, GDE043A3
This is a 4.3 inch e-paper display, parallel interface, with 800x600 resolution, HX8705, and the epaper screen supports partial refresh and 16 grayscale.
INTRODUCTION
This is a 4.3 inch e-paper display with 800x600 resolution, Parallel interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper is perfect for low power devices powered by solar or batteries. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, this 4.3 inch e-paper display GDE043A3 is an ideal choice for applications such as shelf label, industrial instrument and so on.
We could provide Front light, Touch screen and other accessories for you.
Sample code and datasheet are under the Datasheets & Files section.
Use our free e-paper software to prepare your bitmap image for this display.
FEATURE
● Support 16 Grayscale
● Black and white monochrome is easy to read
● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● It supports partial refresh. The partial refresh rate is 1s/frame
● Low power consumption, basically power is only required for refreshing
DEVELOPMENT PLATFORM AVAILABEL
We have this e-paper screen Adapter Board that makes connecting our ePaper simple and fast.

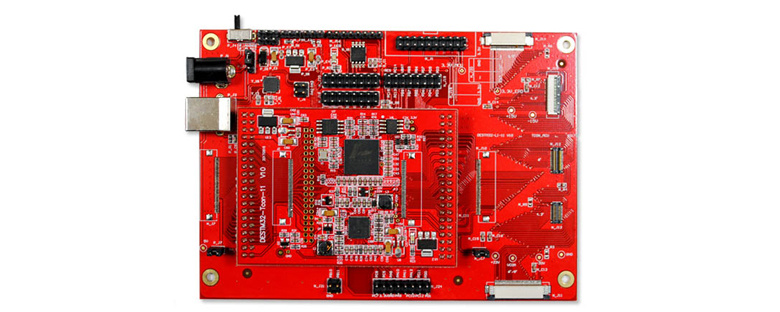

Demo Kit: DESTM32-T Keywords:- 4.3 inch e-paper display parallel interface with glossy glass cover
-
PARAMETERS
PART NUMBER
GDE043A3
SIZE
4.3 inch
TYPE
Dot Matrix
IC
HX8705
RESOLUTION
800x600
OUTLINE SIZE(mm)
104x74.6x1.34
ACTIVE SIZE(mm)
88x66
PIXEL PITCH(mm)
0.11x0.11
OPERATING TEMP.
0℃~50℃
STORAGE TEMP.
-20℃~70℃
CONSTRAST RADIO
Above 8:1 MAX GRAYSCALE
16
COLOR
Black,White
INTERFACE
Parallel
FULL REFRESH(s)
1
PARTIAL REFRESH(s) 1 POWER CONSUMPTION OF THE REFRESH(mW)
600
STANDBY POWER CONSUMPTION (mW)
0.4
Optional
DRAWING
-
