- Commodity name: 1.54 inch flexible e-paper display small e-ink screen ACF Thermal Compression Bonding, GDEW0154I9FC

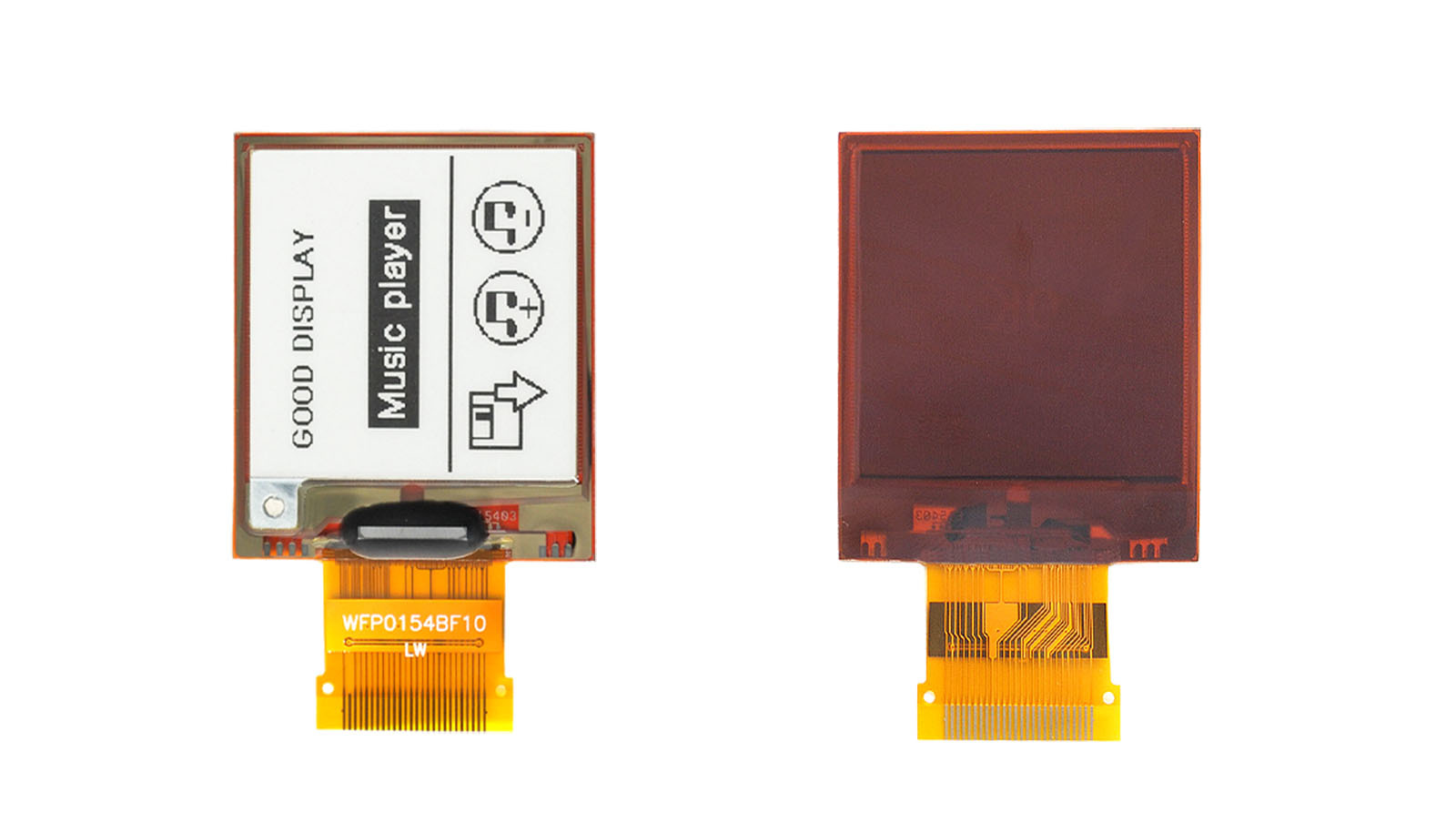

This is a 1.54 inch flexible e-paper display with 152x152 resolution, UC8151D, SPI interface, and this small e-ink screen display supports partial refresh and 4 grayscale.
FLEXIBLE 1.54 INCH E-PAPER
Flexible, Partial Update, UC8151D, 152x152 Resolution, Paper-Like Displaying, Low Power
INTRODUCTION
This is a 1.54 inch flexible e-paper display which use the flexible substrate as base plate, with 152x152 resolution, SPI interface, and the e-paper display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEW0154I9FC is perfect for low power devices powered by solar or batteries.
Usually, the e-paper display is mostly plugged into the FPC, but this 1.54 inch e-ink screen GDEW0154I9FC is a ACF Thermal Compression bonding method, and the gold finger of the FPC is facing down when the e-paper display side is facing up. We can offer the adapter board for test.
Use our free e-paper software to prepare your bitmap image for this display, also you could make the picture on our bitmap conversion website: www.it-iot.cn/English.html
You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: https://github.com/abao66669999/Good-Display-Software
FEATURE
● Black and white monochrome is easy to read
● Versatile. Use in portrait or landscape format
● It supports small bending because its flexible feature
● It supports partial refresh, the refresh rate is 0.3s/frame
● Bistable. (Will continue to display with no power source)
● Ultra-thin. It is thinner than the normal electronic paper display
● I2C Signal Master Interface to read external temperature sensor.
Keywords:- flexible e-paper display
- small e-ink screen
-
PARAMETERS
PART NUMBER
GDEW0154I9FC
TYPE
Dot Matrix
SIZE
1.54 inch
IC
UC8151D
RESOLUTION
152x152
OUTLINE SIZE(mm)
31.8x37.32x0.3
ACTIVE SIZE(mm)
27.51x27.51
PIXEL PITCH(mm)
0.181x0.181
OPERATING TEMP.
0℃~50℃
STORAGE TEMP.
-25℃~70℃
CONNECTOR
26 Pin FPC
MAX GRAYSCALE
4
COLOR
Black, White
INTERFACE
SPI
FULL REFRESH(s)
3
PARTIAL REFRESH TIME(s)
0.3
POWER CONSUMPTION OF THE REFRESH(mW)
26.4
STANDBY POWER CONSUMPTION (mW)
0.0165
